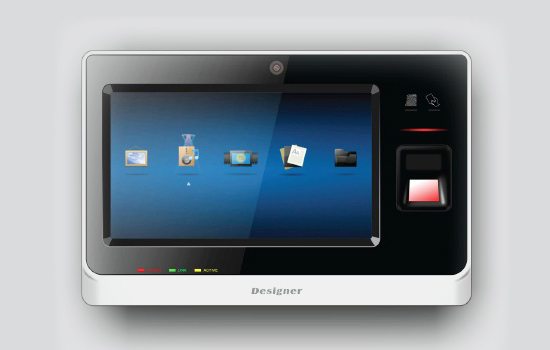

1. Windows CE 6.0 operating system with Web Server, FTP Server and SQL database embedded.
2. 7-inch touch screen; Each terminal has a built-in web-based software. Other than that we provide a free central management software (ASP.NET + SQL Express) for larger-scaled networking.
3. Can use either a terminal or a PC as the server for synchronizing all the connected slave terminals.
4. Optical fingerprint sensor +125KHz or 13.56KHz badge reader
5. USB port for USB Flash Disk transactions download
6. Auto reconciliation of user & fingerprint accounts among multiple terminals in network.
7. Allows 1:N (fingerprint only) & 1:1 (RF badge + fingerprint) authentication modes.
8. Allows storage of 9,500 fingerprints (two fingerprints each user) , 30,000 RF badges and 250,000 events.
9. Color touch screen wallpaper is replaceable for displaying custom graphic design & company logo

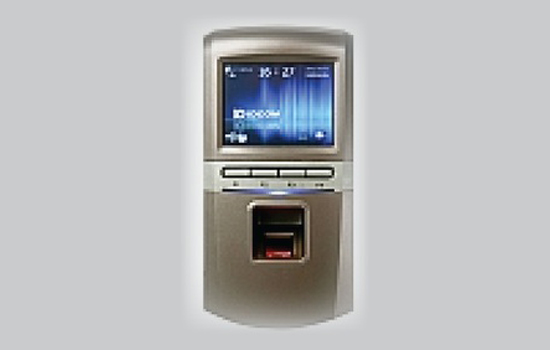

1. Color touchscreen wallpaper is replaceable for display custom graphic & logo
2. Windows CE 6.0 operating system with Web Server, FTP Server and SQL database attached.
3. Built-in Web-interfaced application fulfils management of users ; Maintain data on site and access it from any Web browser
4. TCP/IP interfaced: LAN/WAN, Wifi (optional)
5. Optical fingerprint sensor + Dual Mode 125KHz RF + Mifare 13.56MHz badge reader
6. Daylight Saving Time Setting.
7. Auto database, including users & fingerprints, reconciliation between the Master and the Slave terminals in the network. Eliminate the need for deidicated servers, software installation, system administration, and IT hassles, and can adminster the entire system from virtually any Web browser.
8. Allows 1:N(fingerprint only) & 1:1(RF badge + fingerprint) authentication modes.
9. Standalone Mode and Network Mode. No Software Installation necessary.
10. Allows a storage of 9,500 fingerprints, 30,000 RF badges and 250,000 events.
11. 50 programmable bell ring times (through web browser) & replaceable .wav music file(through FTP)

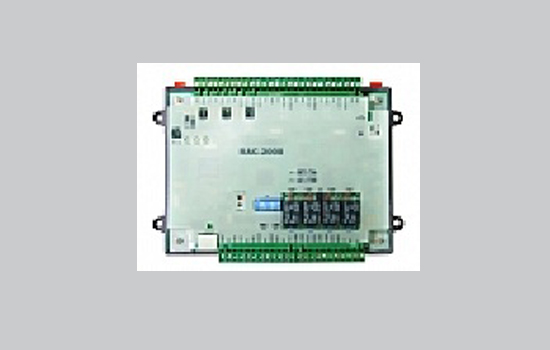

1. Store maximum 15,000 cardholders/events.
2. Blacklist to prevent unknown usage of lost card.
3. Native IP, reliable & stable 10/100BaseT fast Ethernet.
4. Provide 2 relay outputs for electronic lock and alarm.
5. Control panel holder & block terminal ensure easy installation & easy maintenance.
6. Provide 128 time zones and schedules, 8 time conditional unlock door schedules, 100 holidays schedules per year. (Able input date through software)
7. Anti-passback and Duress card/code setting. When door opened in the emergency, control panel will send signal to control center at the same time for tracing and rescue.
8. Door sensor detection time function. The alarm will activate when door unlock over detection time setting.
9. ESD / Surge protection design to protect devices & enhances communication quality.
10. RTC (Real Time Clock) and Watchdog function ensures accurate date/time and system free from halting.
11. Support connects extra PSU-330 Uninterrupted power supply, ensure the operation during power outage.
12. Control panel and reader separate design, maximum controls 4 RS-485 Readers. (2 IN / 2 OUT)
13. Provide optical coupled isolated sensors for door sensor, Exit button and reader tamper.

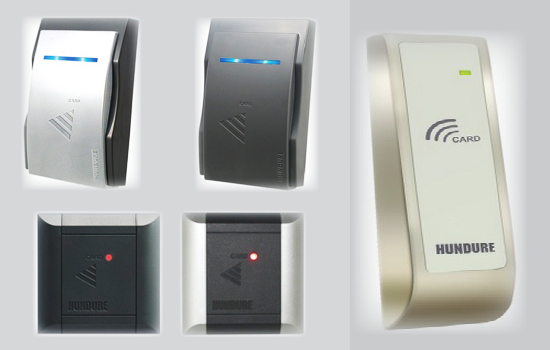

1. Reliable & easy installation.
2. Reader tamper proof detection function.
3. Watchdog function secures system free from halting.
4. Base on different demands, customs have different selection.
5. Slim, stylish design, sensitive touch keypad with blue backlight suit for various locations. (PXR-92/94)
6. Graphic Display with backlight, LCD Display of date, time, weekday and controller status. (PXR-34/94/RCU)
7. ISO 14443-A compliant , support MIFARE® / MIFARE® DESFire read format.
8. Unique ID or Block read format supported and programmable key A value.
9. Metal housing, strong protection. (PXR-70)
